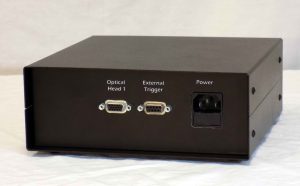

Manual Panel Controller features an optional 10-turn intensity knob with marked graduations and a setting lock tab, so that intensity settings can be documented and re-applied. We offer the controller with or without a front-panel timer. When the system is equipped with a timer, the desired duration can be set on the front panel with time ranges varying from 9.999 seconds to 9999 hours, and a start button on the front panel of the Controller or external trigger wired to the back of the Controller will start the timer and run the exposure cycle for the pre-set duration. A reset signal is also available at the external trigger connector to force the light output off for timing control or safety purposes. The external trigger port also allows monitoring of the LED board temperature via direct thermistor resistance measurement.
1 to 6-channel control are available
Physical Sizes (H x W x D):
Controller size ranges from 127mm X 254mm X 203mm to 127mm X 254mm X 203mm depending on the system.
Optional adjustable knob
Exposure Cycle Control:
Optional built-in timer
External Trigger Interface:
