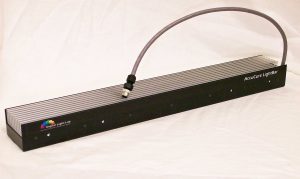

AccuCure 23″ Wide Beam LED LightBar

Contact us today to speak to a product specialist

Send Us A Message

1.865.694.7892

Description:

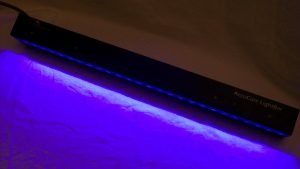

The 23″ AccuCure Wide Beam LightBar with built-in wide beam optics and passive heat sink, emits a wide uniformed beam to the application area.    The AccuCure LightBar system offers instant-on/off capability, continuous or pulse mode of operation, and provides an energy efficient cure with minimal heat radiation to the work piece at a precise wavelength.   This LightBar is intended for UV curing in manufacturing and inspection line facilities with minimal installation requirements.

Narrow output spectrum is one of the primary benefits of LED curing systems over other technologies.  Whereas other systems produce a variety of UV emission peaks and IR outputs that do not cure the product and may actually harm the substrate, LEDs provide a much more energy efficient, targeted cure.  Additionally, the upfront cost of LEDs are offset by much lower operating energy and maintenance costs, with LED curing solutions lasting tens of thousands of hours compared with the mere hundreds of hours of operation of a mercury system.

The AccuCure LightBar is available with a variety of Controller options including industry-standard 4-20mA control and temperature monitoring, software control of the system well suited to research and development processes, timer, and manual dial control, all allowing for infinitely adjustable intensity settings.  A wide variety of UV & VIS wavelengths are available and sizes may be custom ordered for OEM applications with no MOQs.

Available Wavelengths:

265nm, 285nm, 365nm, 385nm, 395nm, 405nm, 420nm, 435nm, 445nm, 455nm, 470nm, 505nm, and additional wavelengths including UV-B & UV-C.

Physical Size (H x W x D):

50mm X 76mm X 580mm

Beam Pattern:

Linear

Aperture:

580mm x 18mm

Cooling:

Natural Air

Compatible Controllers:

AccuCure Controllers

Have a UV curing project in mind? Let us help! Contact us today for personalized help from our product specialists!
