AccuCure Curing Cabinet

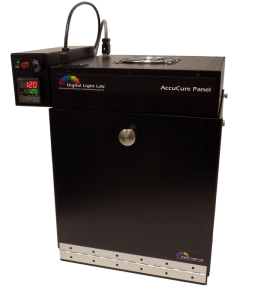

Curing cabinet

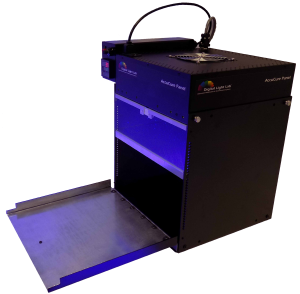

LED Curing Cabinet open door

Contact us today to speak to a product specialist

Send Us A Message

1.865.694.7892

Description:

Digital Light Lab’s AccuCure Curing Cabinet is designed for compatibility with all AccuCure LED Panel systems.  The Curing Cabinet allows for repeatable, uniform cure cycles in an enclosed area to help shield the user from UV light exposure and off-gassing products generated during the UV curing process.  The reflective interior also increases output pattern uniformity and improves peak intensity at longer working distances.  The Curing Cabinet also interfaces with elements of the Modular Panel system to allow control features such as intensity, timer, and external trigger control, and features a safety switch to protect the operator from UV exposure when the door is opened.

Features:

  • Fully contained 12” x 12” UV LED Curing Cabinet with adjustable shelf height
  • Reflective inner surface for improved intensity and uniformity
  • Attachments available for intensity and timer control
  • Safety switch to disable optical output when door is opened

Physical Size (H x W x D):

330mm X 318mm X 310mm

Beam Pattern:

Flood



Compatible Panels:

AccuCure Modular Panel

Have a UV curing project in mind? Let us help! Contact us today for personalized help from our product specialists!
