Description:

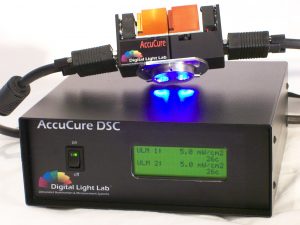

The PhotoDSC is a UV and VIS LED-based photo accessory system for leading manufacturers’ DSC (Differential Scanning Calorimeter) including TA Instrument’s Q and Discovery Series as well as Perkin Elmer’s 4000 & 6000 series, Mettler Toledo, among others.

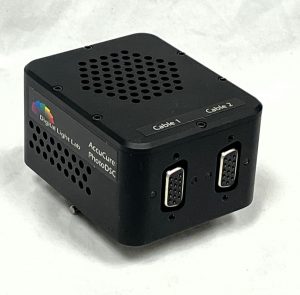

The system contains two LED optical heads that provide radiation to the sample and reference cell areas with built-in detectors that monitor the intensity level as well as a closed-feedback loop that detects any drift in the intensity. The Controller unit, with USB interface and included communications capability with the DSC system’s external trigger interface, offers precise LED optical head controls via a supplied software utility. This utility also offers temperature monitoring capability, and allows the user to create a time varying UV/VIS output profile, programmable pulsed UV/VIS output, or dynamically change the UV/VIS output. The system may operate in an either relative or calibrated mode. In relative mode, the intensity may be set relatively (i.e. 0% to 100%). In calibrated mode the user can set the operating intensities in mW/cm2 for each sample and reference cell. This system is calibrated by NIST standards and yearly calibration is recommended.
(Digital Light Lab is not affiliated with TA Instruments or Perkin Elmer, Q and Discovery Series DSCs are trademarks of TA Instruments. DSC 4000 and 6000 are trademarks of Perkin Elmer )
Available Wavelengths:
265nm, 285nm, 310nm, 365nm, 385nm, 395nm, 405nm, 420nm, 435nm, 445nm, 455nm, 470nm, 505nm, and additional wavelengths including UV-B & UV-C.
Beam Pattern:
Spot
Aperture:
20 mm
Built-in Detector:
Yes
Cooling:
Forced Air, Built-in Fan
