Dual Wavelength LED Panel

Contact us today to speak to a product specialist

Send Us A Message

1.865.694.7892

Description:

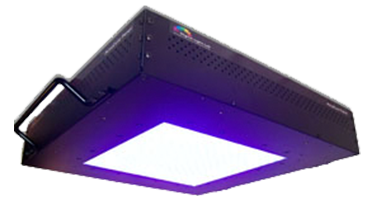

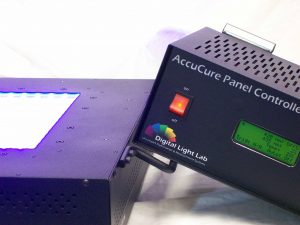

The AccuCure Panel utilizes an array of multiple wavelength UV/VIS LEDs in a 288mm x 288mm flood beam pattern.  The dual LED configuration allows the operation of each individual wavelength as well as operation of both wavelengths simultaneously.  The user may change the output of each wavelength independently from each other and thus mix the wavelengths via the manual control or optional AccuCure software.

AccuCure Panels feature include instant-on/off capability and provide an energy efficient cure with minimal heat radiation to the work piece at a precise given wavelength with continuous or pulse mode of operation within a flood beam pattern.  Custom patterns are also available without MOQs.

Available Wavelengths:

265nm, 285nm, 310nm, 365nm, 385nm, 395nm, 405nm, 420nm, 435nm, 445nm, 455nm, 470nm, 505nm, and additional wavelengths including UV-B & UV-C.

Physical Size (H x W x D):

91mm X 495mm X 495mm

Beam Pattern:

Flood

Aperture:

288mm X 288mm

Built-in Detector:

No

Cooling:

Forced Air, Built-in fans

Have a UV curing project in mind? Let us help! Contact us today for personalized help from our product specialists!
