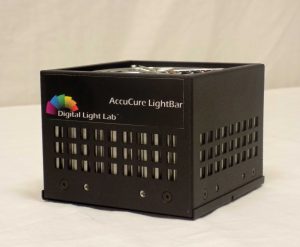

AccuCure Focused Narrow Beam LED LightBar

4in Focused LightBar

Contact us today to speak to a product specialist

Send Us A Message

1.865.694.7892

Description:

The 4” Focused Narrow Beam LightBar with built-in narrow focused beam lens, active heat sink and fan, emits a focused uniformed beam to the application area.    The AccuCure LightBar system offers instant-on/off capability, continuous or pulse mode of operation, and provides an energy efficient cure with minimal heat radiation to the work piece at a precise wavelength.   This LightBar is intended for UV curing in manufacturing and inspection line facilities with minimal installation requirements.

Narrow output spectrum is one of the primary benefits of LED curing systems over other technologies.  Whereas other systems produce a variety of UV emission peaks and IR outputs that do not cure the product and may actually harm the substrate, LEDs provide a much more energy efficient, targeted cure.  Additionally, the upfront cost of LEDs are offset by much lower operating energy and maintenance costs, with LED curing solutions lasting tens of thousands of hours compared with the mere hundreds of hours of operation of a mercury system.   The AccuCure 4″ LightBar is available in a variety of  UV / VIS wavelengths, with intensity starting at 5W/cm² for UV-A systems.  Custom designed systems are available with no MOQs.

Available Wavelengths:

265nm, 285nm, 310nm, 365nm, 385nm, 395nm, 405nm, 420nm, 435nm, 445nm, 455nm, 470nm, 505nm, and additional wavelengths including UV-B & UV-C.

Physical Size (H x W x D):

100mm X 100mm X 80mm

Beam Pattern:

Linear

Aperture:

100mm x 6mm

Cooling:

Forced Air, Built-in Fan

Compatible Controllers:

AccuCure Controllers

Have a UV curing project in mind? Let us help! Contact us today for personalized help from our product specialists!
