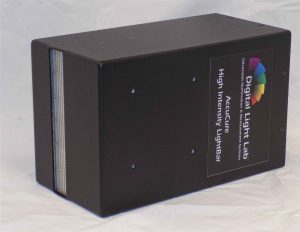

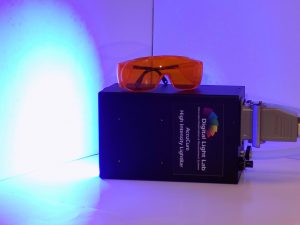

AccuCure High Power LED LightBar

Contact us today to speak to a product specialist

Send Us A Message

1.865.694.7892

Description:

Digital Light Lab has introduced the liquid cooled AccuCure High Power LightBar system. With an aperture of 152mm x 25mm,  the linear pattern liquid cooled LED optical head features continuous or pulse mode of operation with wide beam aperture, and optional 4-20mA control.   This LightBar is intended for UV curing in high speed production manufacturing or in-line printing facilities with minimal installation requirements.

Narrow output spectrum is one of the primary benefits of LED curing systems over other technologies.  Whereas other systems produce a variety of UV emission peaks and IR outputs that do not cure the product and may actually harm the substrate, LEDs provide a much more energy efficient, targeted cure.  Additionally, the upfront cost of LEDs is offset by much lower operating energy and maintenance costs, with LED curing solutions lasting tens of thousands of hours compared with the mere hundreds of hours of operation of a mercury system.   The AccuCure High Power LightBar is available in a variety of  UV / VIS wavelengths starting at 6W/cm².  Custom designed systems are available with no MOQs.

Available Wavelengths:

365nm, 385nm, 395nm, 405nm, and many others.

Physical Size (H x W x D):

249mm X 157mm X 132mm

Beam Pattern:

Linear

Aperture:

152mm x 25mm

Built-in Detector:

No

Cooling:

Liquid Cooling

Have a UV curing project in mind? Let us help! Contact us today for personalized help from our product specialists!
