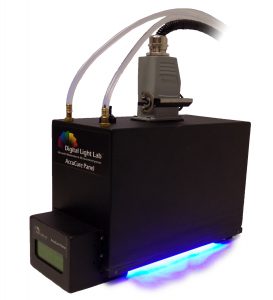

AccuCure High Power LED Curing Panel

Contact us today to speak to a product specialist

Send Us A Message

1.865.694.7892

Description:

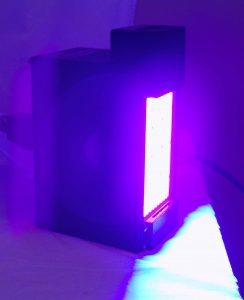

Digital Light Lab is introducing a new high powered UV LED based curing solution to the AccuCure product, the AccuCure High Power Panel system.   With an aperture of 203mm x 114mm and liquid cooling, this panel offers high power and uniform flood pattern and is intended for high speed production UV curing applications.

Different control options of the system include industry-standard 4-20mA control and temperature monitoring, software control of the system well suited to research and development processes, and manual dial control, all allowing for infinitely adjustable intensity settings.

Optional sensor attachments feature calibrated two-channel radiometer capable of monitoring intensities (in W/cm²) of front and rear sections of Panel aperture.  The sensor is also easily detachable for calibration or maintenance purposes.

Custom designs are available with no MOQ.

Available Wavelengths:

265nm, 285nm, 310nm, 365nm, 385nm, 395nm, 405nm, 420nm, 435nm, 445nm, 455nm, 470nm, 505nm, and additional wavelengths including UV-B & UV-C

Physical Size (H x W x D):

305mm X 152mm X 204mm

Beam Pattern:

Flood

Aperture:

203mm x 114mm

Built-in Detector:

Yes

Cooling:

Liquid cooling

Have a UV curing project in mind? Let us help! Contact us today for personalized help from our product specialists!
