AccuCure Modular (Scalable) Panel

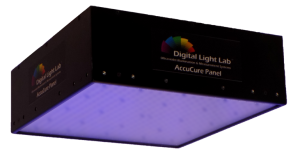

scalable panel 12 x 12 front

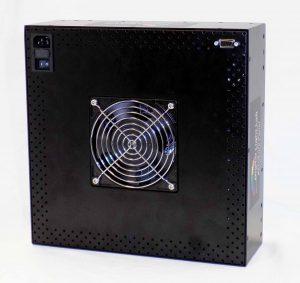

12 x 12 panel back

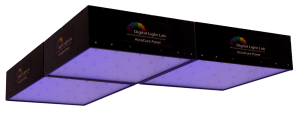

L-shape tiled panel

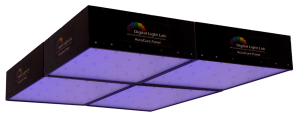

tiled panels

Description:

Digital Light Lab’s AccuCure Modular Panel is a 12″ x 12″ UV LED panel that can be tiled and joined together to fit any desired width and length of any production line or curing tunnel.  Near-seamless edges produce high uniformity at any distance.  Built-in forced-air cooling ensures a longer LED lifespan.  Easy integration with simple plug in and turn on functionality.  Adjustable intensity allows stable radiation at either low or high intensity outputs

This AccuCure Panel can be directly plugged into a standard 120V outlet. Available options include adjustable intensity control via a built-in 10-turn precision knob and temperature monitoring.  Additional options for controlling multiple panels include industry-standard 4-20mA or 0-5VDC analog intensity control.  In addition, the AccuCure Module Panel has been designed to work mounted on the AccuCure Curing Cabinet.

All AccuCure Panels feature include instant-on/off capability and provide an energy efficient cure with minimal heat radiation to the work piece at a precise given wavelength with continuous or pulse mode of operation within a flood beam pattern.  A wide variety of UV & VIS wavelengths are available and sizes may be custom ordered for OEM applications with no MOQs.

Available Wavelengths:

265nm, 285nm, 310nm, 365nm, 385nm, 395nm, 405nm, 420nm, 435nm, 445nm, 455nm, 470nm, 505nm, and additional wavelengths including UV-B & UV-C.

Physical Size (H x W x D):

102mm X 305mm X 305mm

Beam Pattern:

Flood

Aperture:

290mm X 290mm

Built-in Detector:

No

Cooling:

Forced Air, Built-in Fan

Power Source:

120V wall outlet

Have a UV curing project in mind? Let us help! Contact us today for personalized help from our product specialists!
