Description:

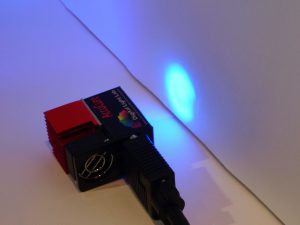

Digital Light Lab’s AccuCure ULM-1 Spot is the smallest LED head in the AccuCure family. The ULM-1 uses the latest LED technology in UV Curing applications providing accurate radiation (i.e. wavelength, intensity, and pattern) to the application area. The ULM-1 features wide beam optics with a ~20mm divergent spot pattern, continuous or pulse mode of operation, and active cooling. The ULM-1 can be part of a calibrated system complete with built-in detector, active feedback control and radiometric precision measurement.
Compact design allows easy integration into existing and new production lines. Ideal for R&D, medical device manufacturing, precision applications, laboratory use, sterilization, water purification, and industrial production lines.
Available Wavelengths:
265nm, 285nm, 310nm, 365nm, 385nm, 395nm, 405nm, 420nm, 435nm, 445nm, 455nm, 470nm, and other wavelengths available.
Physical Size (H x W x D):
51mm X 30mm X 46mm
Beam Pattern:
Spot
Aperture:
20 mm
Built-in Detector:
Yes
Cooling:
Forced Air, Built-in Fan
Compatible Controllers:
